Unit Tests

In this section, we will write a unit test for the CrossUp function implemented in the barhelper package. The kp init command already created a test skeleton in tests/UnitTests.mq5, which we will now complete. See Unit Tests section for a more conceptual view on this topic.

Step 1: Review the Generated Skeleton

Open the file tests/UnitTests.mq5. You will see a basic structure like this:

Fragment of tests/UnitTests generated by init command
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
//+------------------------------------------------------------------+
//|                                                    UnitTests.mq5 |
//|                                 Unit Tests for Package barhelper |
//|                                      Organization: douglasrechia |
//+------------------------------------------------------------------+
#property copyright   "<Add copyright here>"
#property link        "<Add link here>"
#property description ""
#property description "Version: 1.0.0"
#property description ""
#property description "Description: Unit tests for package barhelper"
#property description "Organization: douglasrechia"
#property description "Author: Douglas Rechia"
#property description "License: MIT"
#property description ""
#property description "Powered by KnitPkg for MetaTrader"
#property description "https://knitpkg.dev"

// Include the headers under test
#include "../knitpkg/include/douglasrechia/barhelper/Header.mqh"

//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
bool TestName()
  {

Note that line 20 includes the old header name Header.mqh. Since we renamed it to Cross.mqh, we need to update the include path accordingly.

Step 2: Implement the Unit Test

We will rename the placeholder function TestName to TestBasicScenario1 and implement a basic test case for CrossUp. After editing, the file should look like this:

Unit Test for barhelper
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
//+------------------------------------------------------------------+
//|                                                    UnitTests.mq5 |
//|                                 Unit Tests for Package barhelper |
//|                                      Organization: douglasrechia |
//+------------------------------------------------------------------+
#property copyright   "Douglas Rechia"
#property link        "https://knitpkg.dev"
#property description ""
#property description "Version: 1.0.0"
#property description ""
#property description "Description: Unit tests for package barhelper"
#property description "Organization: douglasrechia"
#property description "Author: Douglas Rechia"
#property description "License: MIT"
#property description ""
#property description "Powered by KnitPkg for MetaTrader"
#property description "https://knitpkg.dev"

// Include the headers under test
#include "../knitpkg/include/douglasrechia/barhelper/Cross.mqh"

//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
bool TestBasicScenario1()
  {
   double array2[] = {0.99,   0.98,    1.00,    1.00,    1.03,    1.04,    1.02};
   double array1[] = {1.00,   1.01,    1.01,    1.01,    1.02,    1.01,    1.03};
   bool expected[] = {false,  false,   false,   false,   false,   false,   true};

   douglasrechia::TimeSeriesArray<double> series1(array1, -1, -1, false);
   douglasrechia::TimeSeriesArray<double> series2(array2, -1, -1, false);

   for(int i=5;i>=0;i--)
     {
      // expected index is in the inverse order because TimeSeries index 0 is the latest element
      if(douglasrechia::CrossUp(series1, series2, i) != expected[ArraySize(expected)-i-1])
        {
         Print(StringFormat("Fail at shift %d", i));
         return false;
        }
     }

   return true;
  }

//+------------------------------------------------------------------+
//| DoTests                                                          |
//+------------------------------------------------------------------+
void DoTests(int &testsPerformed,int &testsPassed)
  {
   string testName="";

//--- TestBasicScenario1
   testsPerformed++;
   testName="TestBasicScenario1";
   if(TestBasicScenario1())
     {
      testsPassed++;
      PrintFormat("%s pass",testName);
     }
   else
      PrintFormat("%s failed",testName);
//---
// Add more tests here as needed
  }
//+------------------------------------------------------------------+
//| UnitTests()                                                      |
//+------------------------------------------------------------------+
void UnitTests(const string packageName)
  {
   PrintFormat("Unit tests for Package %s\n",packageName);
//--- initial values
   int testsPerformed=0;
   int testsPassed=0;
//--- test distributions
   DoTests(testsPerformed,testsPassed);
//--- print statistics
   PrintFormat("\n%d of %d passed",testsPassed,testsPerformed);
  }
//+------------------------------------------------------------------+
//| Script program start function                                    |
//+------------------------------------------------------------------+
void OnStart()
  {
   UnitTests("barhelper");
  }
//+------------------------------------------------------------------+

Step 3: Compile and Run the Tests

You can compile the test using either:

kp compile

Or by pressing F7 in MetaEditor.

To run the test:

  • If compiled via kp compile, execute Scripts/barhelper/bin/UnitTests in MetaTrader.
  • If compiled via MetaEditor, execute Scripts/barhelper/tests/UnitTests.

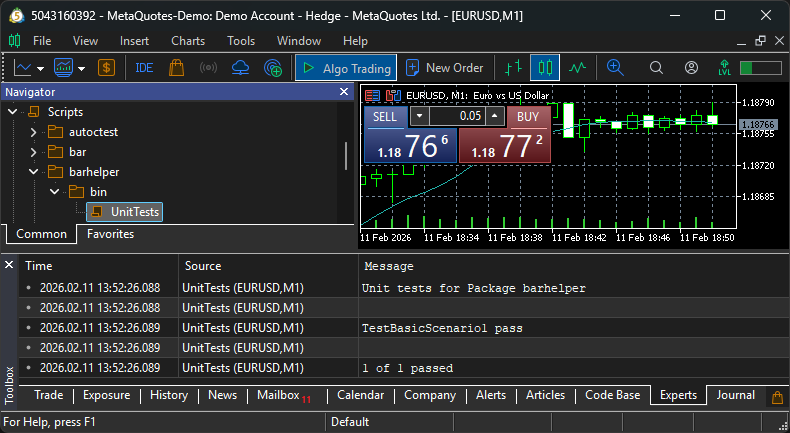

Check the Experts tab for output like this:

alt text

Suggested Exercises

  • Implement a Cross function that returns true if either series crosses the other.
  • Add a test for CrossUp(series2, series1) to verify the inverse case.
  • Add a test for Cross(series1, series2) to validate the new function.
  • Add a test for out-of-bounds shift values to ensure your function handles edge cases safely.

Adding New Unit Tests

Every time you create a new unit test function, you must also add a call to it inside the DoTests(...) function. This ensures that the test is executed when the script runs. For more details, see the section Test skeleton generated by kp init.

Congratulations! You now know how to write unit tests for your KnitPkg packages. This will make your code more robust, maintainable, and easier to evolve with confidence.
